3.3 Tripp-Lite
3.3.1 OmniPro-450 (675) interface pinout
|
Pin # |
Signal type |
|
1 |
Common (negative) |
|
2 |
External inverter shutdown (positive side) |
|
3 |
Line fail (norm. open) |
|
4 |
External inverter shutdown (negative side) |
|
5 |
Line fail (norm. closed) |
|
6 |
Low battery (norm. open) |

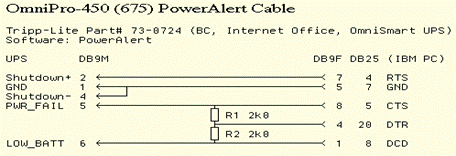

3.3.2 OmniPro-450 (675) PowerAlert Cable
Tripp-Lite Part# 73-0724 (BC, Internet Office, OmniSmart UPS)

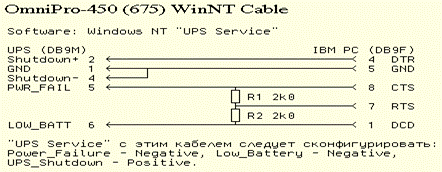

3.3.3 OmniPro-450 (675) WinNT Cable
Software: Windows NT "UPS Service"
"UPS Service" с этим кабелем следует cконфигурировать так: Power_Failure - Negative, Low_Battery - Negative, UPS_Shutdown - Positive.

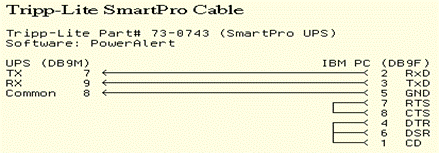

3.3.4 Tripp-Lite SmartPro Cable
Tripp-Lite Part# 73-0743 (SmartPro UPS) , Software: PowerAlert
3.4 Neuhaus Distribution Group

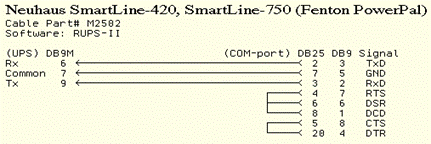

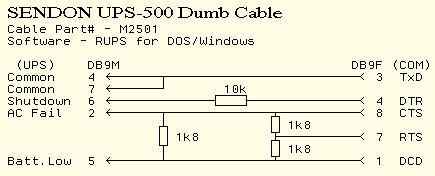

3.4.1 Neuhaus SmartLine-420, SmartLine-750 (Fenton PowerPal)
Software: RUPS-II , Cable Part# M2502
3.4.2 Neuhaus SmartLine/Fenton PowerPal interface pinout:
|
Pin # |
Signal Type |
|
1 |
N/A |
|
2 |
AC Failure (Contact Closure) |
|
3 |
N/A |
|
4 |
Common |
|
5 |
Battery Low (Contact Closure) |
|
6 |
Rx (RS232) and Turn Off UPS (Contact Closure) |
|
7 |
Common |
|
8 |
N/A |
|
9 |
Tx (RS232) |
The contact closure signals are relay signals and are "normal open". The RS232 signals are photo-transistor signals. 3.5 Para Systems Inc.
3.5.1 MinuteMan A-series DB-9 Interface Port
|
Pin # |
Signal Type |
|
1 |
Unused |
|
2 |
AC Failure |
|
3 |
Unused |
|
4 |
Common (same as 7) |
|
5 |
Low Battery |
|
6 |
RS-232 level shutdown |
|
7 |
Common (same as 4) |
|
8 |
Ground level shutdown (not available on models smaller than A500) |
|
9 |
Reserved |
Pins 2 and 5 are connected to Common when they are true. On pin 6, an rs-232 high level (>9V) will shutdown, when running on battery. On pin 8, shorting to ground will shutdown. 3.6 PowerCom

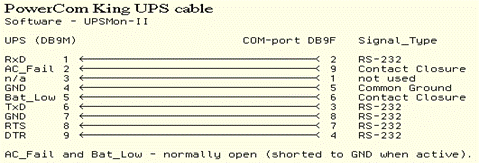

3.6.1 PowerCom King UPS cable Software - UPSMon-II
AC_Fail and Bat_Low - normally open (shorted to GND when active). 3.7 Exide/Deltec/Fiskars

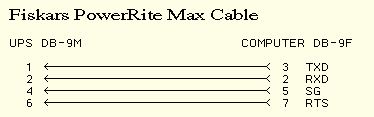

3.7.1 Fiskars PowerRite Max / PowerRite Pro Cable
3.7.2 Fiskars PowerRite UPS Port Configuration Table
|
Pin # |
Signal Type |
Function |
|
1 |
Basic Modem Mode; Input: RS232 high pulse 4 to 5 seconds wide |
Remote UPS off: In presence of AC, Output will turn off for 15 seconds after conditionaldelay. In absence of AC, output is kept off until normal AC returns |
|
1 |
Serial Data Mode; Input: RS232 data |
RS232 serial communication input. 1200 baud, 8-bit, no parity, one stop bit, one start bit, Xon/Xoff |
|
2 |
Basic Mode; Output: RS232 level high |
AC Input failure |
|
2 |
Serial Data Mode; Output: RS232 data |
RS232 serial communication output. Same as input |
|
3 |
Output: Open collector transistor ON, 50 mA. 40 VDC rating |
AC Input failure |
|
4 |
Signal Common |
Signal Common |
|
5 |
Output: Open collector transistor ON. SO mA. 40 VDC rating |
Impending low battery |
|
6 |
Input: RS232 level low (-12V) |
Plug and Play software enable trigger |
|
7 |
Input: Relay contact or RS232 level |
Remote output OFF/ON: UPS total output can be kept off with low signal or closing relay contact |
|
8 |
Output: 8 to 25 VDC, 5 W constant power (0.63 A max. @ 8V) |
Auxiliary Control Power |
|
9 |
Chassis |
Connection to chassis |
3.8 Hewlett-Packard PowerWise
3.8.1 HP PowerWise L600/L900/L1250 interface pinout
|
Pin# |
Signal Type |
Function |
|
1 |
RS-232 Earth Ground |
Signal Common for all RS-232 port signals (earth ground referenced) |
|
2 |
RS-232 Transmit Output |
Serial communication mode - output signal line. |
|
3 |
RS-232 Receive Input / Shutdown |
Serial communication mode - input signal line. Contact Closure mode - shuts down UPS if signal is held high (RS-232 level) for 200 milliseconds while UPS is operating in battery mode. |
|
4 |
AC Line Fail (normally closed) |
Contact Closure mode - opened when AC line fails and UPS is operating in battery mode (breaks connection between Pin#4 and Pin#5). |
|
5 |
Contact Closure Common / RS-232 Common |
Signal Common for all Contact Closure group / RS-232 Signal Common line. |
|
7 |
Low Battery (normally open) |
Contact Closure mode - closed when remaining "on-battery runtime" drops below the under-defined time limit (makes connection between Pin#7 and Pin#5). |
|
9 |
AC Line Fail (normally open) |
Contact Closure mode - closed when in battery mode (makes connection between Pin#9 and Pin#5). |
